Storage Vials / 200µl, Externally Threaded 2D Barcoded Tubes, 96 Rack

200µl, Externally Threaded 2D Barcoded Tubes, 96 Rack

Product Description

These innovative SAFE® 96 2D barcoded, racked tubes are a must have for any laboratory requiring safe and efficient long term storage of microlitre volumes of samples for applications such as bio-banking, epidemiological studies, cohort studies, transfusion medicine, compound management, cryopreservation and forensics.

Each tube has extra-thick walls to help withstand multiple freezing cycles and is made from polished, low-binding virgin polypropylene. Tubes are supplied capped and are certified DNA, DNAse, RNAse, pyrogen and endotoxin free. Caps can be removed manually (see our single and multi-tube decapper/pickers) or using an automated decapper/picking system.

The bottom of each individual tube is precision laser-etched with a unique 12 digit 2D matrix using a ‘wet-on-wet’ process. This process means that the black components, which carry the 2D code, cannot be separated from the tubes through mechanical, chemical or thermal influences. This helps ensure samples have maximum code security with optimal legibility even at cryo-temperatures.

Read more about our LVL 2D barcoded range here.

Cat. No.:
1C-X02-BL-CW-P-L
Unit Qty:
50x96
Packaging:
Box
Unit Qty:
50x96

  • Features
  • Specifications
  • Images

Product Features List:

  • Externally threaded caps give lower profile for better space efficiency
  • 200µl tube with 220µl working volume
  • Leak-tight cap due to patented TPE compression with permanently injected ring
  • Tubes are manufactured from polished, low-binding virgin polypropylene
  • Tubes provided pre-capped and sterile (ISO 8)
  • Tubes are certified free of DNA, DNase, RNase and endotoxins
  • Rack dimensions meet SBS/ANSI specifications
  • 12-digit black/white 2D code on the base of each tube
  • Matrix code easily readable with most common scanners (ECC200 standard)
  • Simple push lock lid
  • Stackable

Additional Information:
Rack identifier: Narrow side- 1D & human readable, Bottom- 2D
Applications:
Biobanking
Epidemiological studies
Cohort studies
Transfusion medicine
Compound management
Forensics
Cryopreservation
Cap Type:
Externally threaded
Compatibility:
SBS/ANSI formatted systems
Diameter (Outer):
8.65mm
Dimensions:

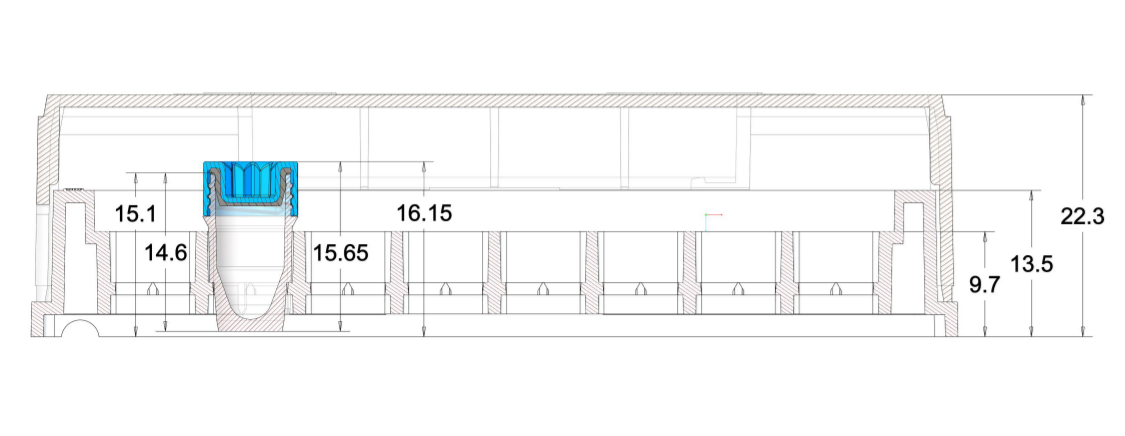

(see technical drawing under Images tab)
DNase/RNase Free:
Yes (+ endotoxin free)
Height:
16.0mm (tube with cap)/16.5mm (racked)
Label Details:
Tube is unlabelled
Material:
Polypropylene Tube/Polycarbonate Rack
Packaging Details:
50 racks of 96 pre-capped, racked tubes
Sterility:
Production sterilised (ISO 8)
Temperature Range:
Tubes and racks from -196°C to +40°C
Volume:
220µl working volume
